How to use the X10R fitting kit
-
Extender with no insertsFits most cue sticks -

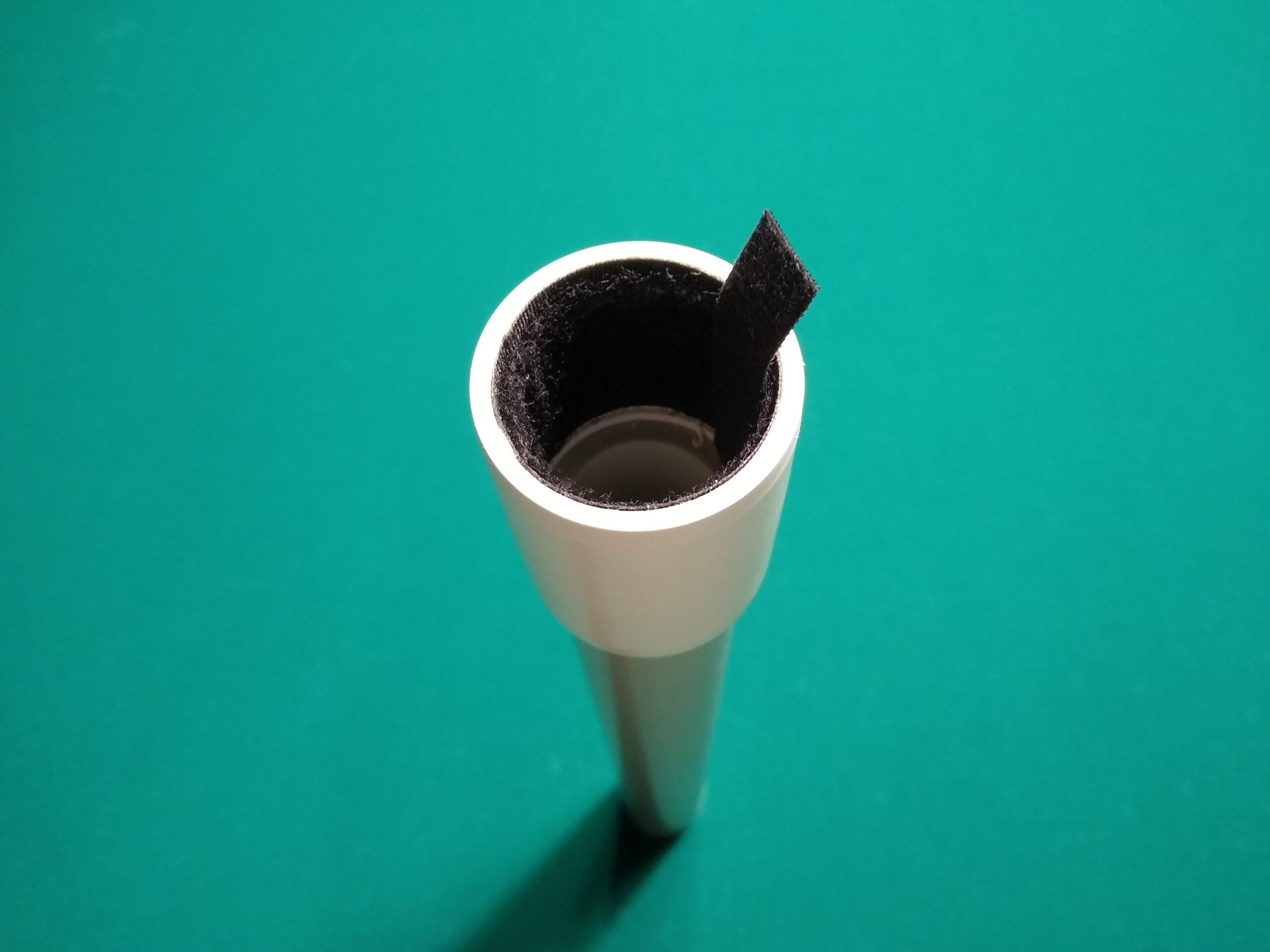

Step 1Insert at 2 o'clock -
Step 2Inserts at 2 and 6 o'clock -
Step 3Inserts at 2, 6, and 10 o'clock -
Inserts and fastening dotsExtender almost completed with 3 inserts and fastening dots -
Completed ExtenderExtender completed with inserts bent outwards and affixed to the fastening dots.
Generally, the X10R will fit cues sizes ranging from 1.1" to 1.3". To adjust and optimize the fit of the extender to your cue stick we have included inserts to place inside the collar. The included hook-and-loop inserts are made of nylon and polyethylene and stick very well when pressed together. The inserts are also stackable for increased thickness.
We include three sets of different sizes in black or white:
- Thin – very smooth and soft, black or white
- Medium – slightly thicker and very soft material, black
- Thick – slightly wider and very soft material, black
For best fit arrange them evenly spaced in a triangular shape (see images). The more inserts you add, the stronger the hold of the X10R will become. We also suggest leaving approximately 1/2" to 3/4" of the insert to protrude out of the opening (see images). If you are not going to use the included round fastening dots it is a good idea to bend the insert back and away from the opening prior to inserting the cue stick. This will prevent the inserts from being pushed into the extender.
Alternatively you can affix the included round fastening dots on the outside of the collar to secure the protruding ends of the inserts.
The fastening dots are peel and stick. Simply remove the backing and press them in place, no glue needed. Arrange them also in a triangular shape in line with the inserts. After applying the dots bend back the insert and fasten it to the dot (see images).
